FLeX Series, 2-way, 2-stage, solenoid-operated directional poppet valve with reverse flow check - flow 2-1
This FLeX Series solenoid-operated 2-way, 2-stage cartridge is a pilot-operated directional poppet valve. The valve is low leakage and available in either a normally open or normally closed configuration to control flow from port 2 to port 1. A reverse flow check will allow flow from 1 to 2 in the closed condition. In the open condition, flow from 1 to 2 will cause the valve to auto-close and pilot flow will pass from 1 to 2.
- Designed and tested to 10 million on-off operational cycles.
- Meets new NFPA test standard T2.6.1 R2014 for fatigue and burst pressure ratings.
- Higher flow rates than competing valves of similar size.
- Designed using CFD fluid simulation for optimized geometries.
- All configurations of this valve include zinc-nickel plating as standard for 1000-hour salt fog protection.
- Coil connector options offer ratings up to IP69K. See individual coil product pages for details.
- This valve exhibits extremely low leakage - 0.004 in3 (0.07 cc3)/min (1 drop/min).
- This cartridge utilizes both FLeX low-power and hazardous location coils.
- This valve is available with a manual push-type override option for normally open versions only.
- A FULL DATA SHEET is available for this model using the link at the top of the page.
- A wide variety of coil termination and voltage options are available, with and without surge protection. See the CONFIGURATION section.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
|Capacity||10 gpm40 L/min.|
|Maximum Operating Pressure||3000 psi210 bar|
|Response Time - Typical||50 ms50 ms|
|Maximum Valve Leakage at 110 SUS (24 cSt)||0.004 in³/min.@5000 psi0.07 cc/min.@350 bar|
|Check Cracking Pressure||50 psi3,5 bar|
|Switching Frequency||15000 cycles/hr15000 cycles/hr|
|Viscosity Range||35 - 2000 SUS2,8 - 380 cSt|
|Valve Hex Size||3/4 in.19,1 mm|
|Valve Installation Torque||20 - 25 lbf ft27 - 33 Nm|
|Model Weight||5.6 oz.159 grams|
|Seal kit - Cartridge||Buna: 990162007|
|Seal kit - Cartridge||Viton: 990162006|
Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

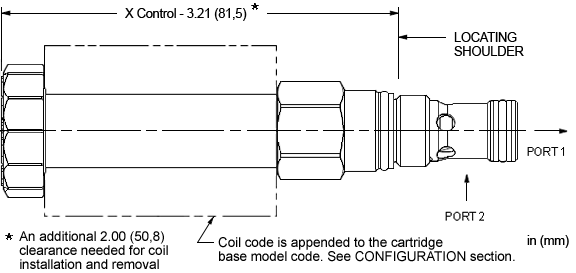

- Please verify cartridge clearance requirements when choosing a Sun manifold. Different valve controls and coils require different clearances.
- An additional 2.00 inches (50,8 mm) beyond the valve extension is needed for coil installation and removal.
- Sun Cartridges with EPDM Seals
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Pilot Controlled Directional Cartridges Technical Tips
